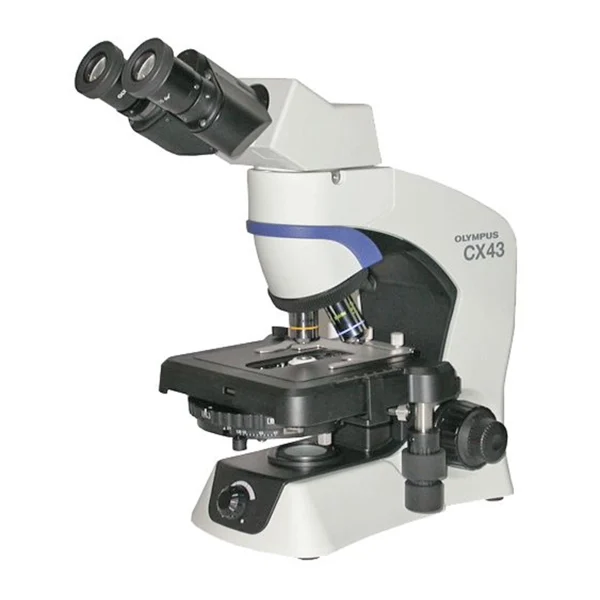

Evident/Olympus CX43 Binocular
$3,920.00
Upright microscope frame for transmitted and reflected light observations. Integrated ransmitted LED illumination, low-positioned quintuple nosepiece, mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide. Built-in universal abbe condenser with NA 1.25, aperture stop, 7 position turret: BF(4X – 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter. Coaxial coarse and fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm. Torque adjustment for coarse focus knob and focus limit stopper. Power cable (035425 UYCP) is required. Including wide range power supply (AC 100 – 240 V 50 / 60 Hz 0.4A), Allen wrench and manual.
In Stock
Choose Accessories
Description
- Supports transmitted and reflected light observation with integrated LED illumination
- Low-positioned quintuple nosepiece with multiple objective positions (BF 4×–100×, 2×, DF, Ph1, Ph2, Ph3, FL) with shutter
- Large mechanical stage (211×154 mm) with 76×52 mm travel, right-hand control, stage lock, and single-slide holder
- Built-in universal Abbe condenser NA 1.25 with aperture stop
- Coaxial coarse and fine focus (15 mm stroke, 300 µm fine rotation) with torque adjustment and focus stopper
- Power cable required (035425 UYCP); includes wide-range power supply (AC 100–240 V, 50/60 Hz), Allen wrench, and manual
- U-CBI30-2-2 Binocular Tube
- Lead-free optics with 30° inclination
- Interpupillary distance adjustable from 48–75 mm
- Adjustable diopter range ±5 on left sleeve
- Compatible with WHB10x and WHB10x-H eyepieces (FN 20)
No brochure available.
